Introduction
Beryllium Nickel Alloy 360 (UNS N03360) is a high-performance material widely recognized for its exceptional mechanical strength, corrosion resistance, and thermal stability. It is especially suitable for components exposed to high stress, elevated temperatures, and harsh environments. When used to manufacture leaf springs, this alloy provides outstanding resilience, fatigue resistance, and reliable performance under extreme conditions where conventional spring steels fall short.
Material Properties of Beryllium Nickel Alloy 360
This alloy delivers one of the highest strength-to-weight ratios among spring materials. Designers can benefit from the following key properties:
-
Ultimate Tensile Strength: Approaching 300,000 psi (2000 MPa), ensuring the spring withstands heavy loads.
-
Yield Strength: Up to 245,000 psi (1690 MPa), providing exceptional resistance to permanent deformation.
-
Excellent Formability: Allows precise shaping of intricate spring designs despite the alloy’s high strength.
-
Stress Relaxation Resistance: Less than 5% at 400°F (200°C), maintaining stable force over time even at elevated temperatures.
-
Fatigue Strength (Reverse Bending): 85,000–90,000 psi (586–655 MPa) at 10 million cycles, offering superior long-term performance.
-
Corrosion Resistance: Surpasses stainless steel, making it ideal for aggressive or marine environments.
This combination of properties ensures that leaf springs made from Alloy 360 deliver consistent performance in demanding mechanical and electronic applications.
Typical Applications of Alloy 360
Alloy 360 is already widely used in high-reliability mechanical and electrical/electronic components requiring exceptional spring characteristics at elevated temperatures. Examples include:
-
Belleville Washers for fire protection sprinkler heads
-
Thermostats and temperature control systems
-
Bellows and Diaphragms for pressure or flow control
-
High-Precision Connectors
-
Burn-In and Test Sockets in electronics
These applications demonstrate the alloy’s versatility, proving its reliability in environments up to 700°F (370°C) for short periods.
Challenges in Manufacturing Leaf Springs with Alloy 360
Despite its exceptional performance, producing leaf springs from Beryllium Nickel Alloy 360 requires overcoming several engineering challenges:
-
High Material Cost: The alloy is far more expensive than common spring steels, demanding precise material utilization and optimized designs to reduce waste.
-
Specialized Forming and Machining: Its high strength makes Alloy 360 difficult to cut, stamp, or bend without advanced tooling.
-

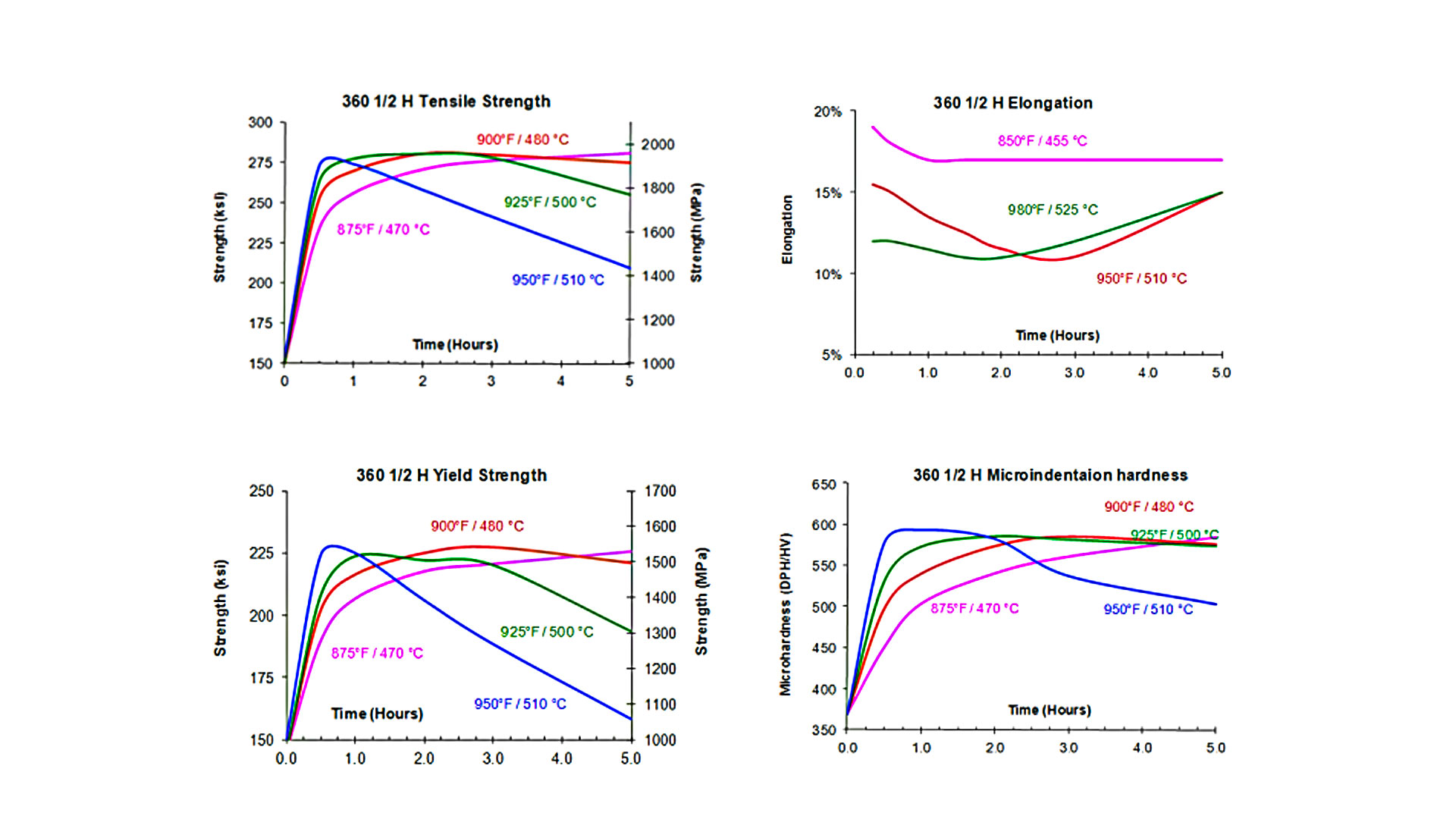

Heat Treatment Precision: Strict control of heat treatment parameters is required to achieve the target combination of hardness, ductility, and stress relaxation resistance.
-
Safety Measures: As a beryllium-containing alloy, it requires stringent safety protocols during fabrication to protect workers from exposure.
Advantages of Leaf Springs Made with Alloy 360
When these manufacturing challenges are addressed, the resulting leaf springs offer unmatched benefits:
-
Exceptional Fatigue Resistance: With fatigue strength of up to 90,000 psi at 10 million cycles, they excel in high-cycle applications.
-
Superior Corrosion and Oxidation Resistance: Outperforms stainless steel in harsh environments, reducing maintenance costs.
-
High-Temperature Stability: Maintains spring characteristics up to 400°F (200°C) continuously, and up to 700°F (370°C) for short-term exposure.
-
Precision Performance: Excellent formability and low stress relaxation allow stable, repeatable spring performance over time.
- Extended Service Life: Superior mechanical and environmental resistance reduce the need for frequent replacements, making them cost-effective in the long run.
Final Note
Beryllium Nickel Alloy 360 is not a typical choice for leaf springs, but for specialized, high-performance applications in aerospace, defense, marine, and high-tech industries, it offers a rare combination of ultra-high strength, corrosion resistance, and fatigue durability. Although manufacturing requires specialized processes and safety measures, the resulting springs provide unparalleled reliability and longevity in the most demanding environments.
