Introduction
As modern mechanical systems continue to evolve toward higher loads, longer service life, and more compact designs, traditional round wire springs often reach their performance limits. In many demanding applications—especially in automotive, industrial, and mechanical assemblies—flat wire springs have become the preferred solution.
Unlike conventional round wire springs, flat wire springs are engineered to deliver higher energy storage, improved fatigue life, and superior load stability within limited installation space. This article explores what flat wire springs are, why they outperform round wire springs in critical applications, and how custom manufacturing ensures optimal performance.

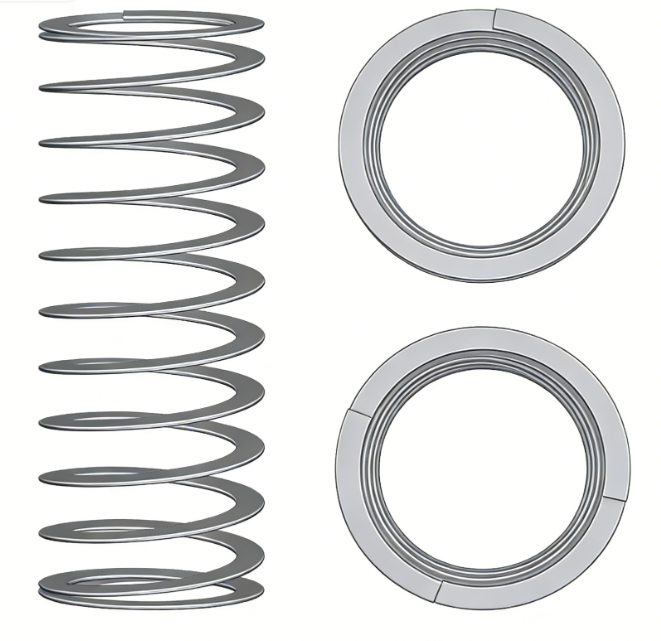

What Is a Flat Wire Spring?
A flat wire spring is a mechanical spring manufactured from wire with a rectangular or square cross-section rather than a circular one. It can be produced in various forms, including:
- Flat wire compression springs
- Flat wire extension springs
- Flat wire torsion springs
The unique cross-sectional geometry allows for better stress distribution and more efficient use of material, making flat wire springs ideal for high-performance and high-cycle applications.
Key Advantages of Flat Wire Springs
1. Higher Fatigue Life
Flat wire springs distribute stress more evenly across the wire cross-section. Compared to round wire springs, this reduced stress concentration significantly improves fatigue resistance, especially in applications involving frequent compression or cycling.
2. Greater Load Capacity in Limited Space
Thanks to their rectangular profile, flat wire springs can store more energy per unit volume. This enables engineers to achieve higher spring forces without increasing the overall spring diameter or free length—an essential advantage in compact assemblies.
3. Improved Load Stability
Flat wire springs offer better control of spring rate and load consistency. This makes them particularly suitable for precision systems where predictable force output is critical.
4. Enhanced Durability Under Harsh Conditions
When combined with appropriate materials and heat treatment processes, flat wire springs demonstrate excellent performance under high stress, vibration, and elevated temperatures.
Flat Wire Springs vs. Round Wire Springs
| Feature | Flat Wire Springs | Round Wire Springs |
|---|---|---|
| Stress Distribution | More uniform | Higher stress concentration |
| Fatigue Life | Longer | Shorter under high load |
| Space Efficiency | Excellent | Limited |
| Load Capacity | Higher in compact designs | Lower |
| Customization Flexibility | High | Moderate |
For applications where space, load, and durability are all critical factors, flat wire springs provide a clear engineering advantage.
Typical Applications of Flat Wire Springs
Flat wire springs are widely used across industries where performance and reliability are non-negotiable:
- Automotive systems: oil pumps, valve mechanisms, clutch assemblies, braking components
- Industrial machinery: heavy-duty actuators, dampers, mechanical linkages
- Electrical and mechanical assemblies: compact force-control components
- Custom equipment: high-load or high-cycle spring requirements
In many of these applications, flat wire springs replace round wire designs to achieve longer service life and improved system efficiency.
Design and Customization Considerations
Designing a flat wire spring requires careful engineering evaluation. Key parameters include:
- Wire width and thickness
- Inner and outer diameter
- Free length and working height
- Spring rate and load requirements
- Operating environment (temperature, corrosion, fatigue cycles)
Material selection is equally critical. Common materials include:
- Stainless steel
- Carbon steel
- Alloy steel
Additional processes such as precision forming, heat treatment, and surface finishing are essential to ensure consistent performance and long-term reliability.
Custom Flat Wire Spring Manufacturing at Hengsheng Spring
At Hengsheng Spring, we specialize in custom flat wire spring manufacturing tailored to specific application requirements. Our engineering-driven approach ensures that each spring is designed and produced to meet exact load, dimensional, and durability specifications.
Our capabilities include:
·Custom design support based on application conditions
·Material selection optimization
·Precision manufacturing and heat treatment
·Strict quality control and dimensional inspection
Whether you need flat wire compression springs for automotive systems or high-load springs for industrial machinery, we provide reliable solutions from prototype to mass production.
Flat wire springs offer a powerful combination of high load capacity, extended fatigue life, and compact design flexibility. As engineering demands continue to increase, they are becoming an essential component in many modern mechanical systems.
If your application requires improved durability, space efficiency, or performance beyond traditional round wire springs, custom flat wire springs may be the ideal solution.
Contact Hengsheng Spring today to discuss your flat wire spring design requirements and receive professional engineering support for your next project.
