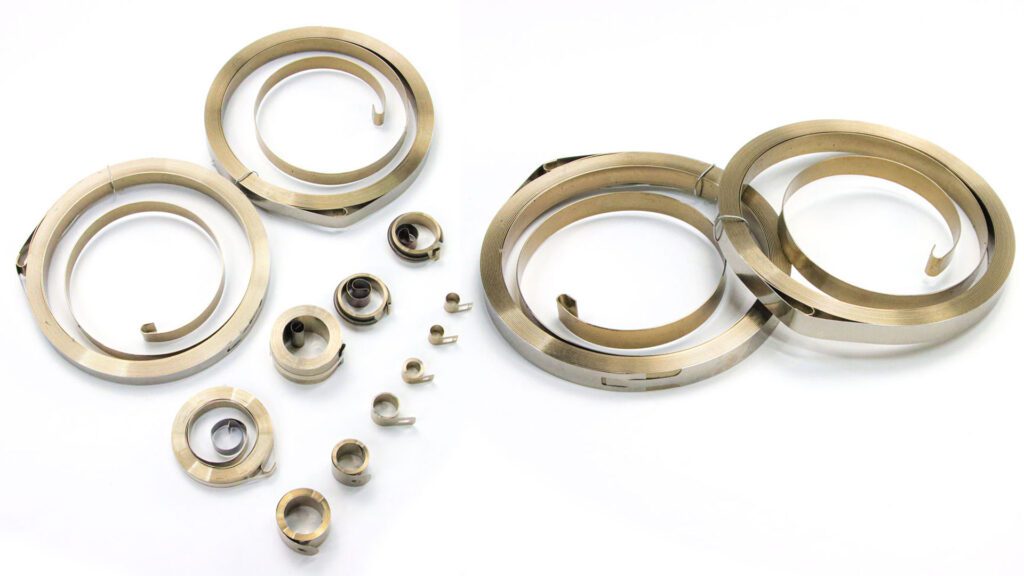

A constant force spring is a coiled strip of metal that exerts nearly the same force over its entire extension range. Despite its simple appearance, this spring plays a crucial role in applications ranging from automotive systems and household tools to medical devices and aerospace equipment.
1. How Does It Work?
Unlike traditional coil springs that get stiffer as they stretch, a constant force spring is a pre-stressed flat metal strip coiled tightly. As it unwinds, it applies a consistent pulling force, thanks to the spring’s design, which relies on continuous bending rather than linear tension.
✅ Put simply:
It works like a tape measure—pull it out, and the resistance feels the same regardless of how far you go.
2. Key Advantages
| Advantage | Description |
|---|---|
| Constant Force Output | Delivers nearly unchanging pull force over full extension |
| Space-Saving Design | Compact and ideal for tight spaces |
| Quiet Operation | Produces minimal noise during motion |
| Long Service Life | Can operate for thousands of cycles |
| Versatile Application | Works in straight pulls, pulleys, or coiling systems |
3. Where Are They Used?
Constant force springs appear in many industries and daily devices:
-
🏥 Medical Equipment – X-ray arm supports, IV stand height adjusters
-
🚗 Automotive – Seatbelt retractors, seat tracks, hood assists
-
📦 Retail Displays – Retractable signs, pricing rails
-
🤖 Automation and Robotics – Cable management, balance support
-
✈️ Aerospace – Satellite panel deployment, hatch releases
4. Manufacturing & Materials
The most common material for constant force springs is stainless steel, such as 301 or 302 grade. In some high-end applications, materials like titanium alloys or specially coated metals are used.
Typical manufacturing steps include:
-
Pre-Stressing & Heat Treatment – Improves elasticity and fatigue life
-
Precision Coiling – Ensures dimensional accuracy
-
Surface Coating – Prevents corrosion and enhances durability
5. Tips for Engineers and Buyers
When selecting or sourcing constant force springs, consider the following:
-
Required load force
-
Stroke length (extension distance)
-
Operating environment (humidity, temperature, corrosion)
-
Method of use (direct pull or pulley system)
-
Custom specifications (material grade, cycle life, tolerance)
📌 Pro Tip: Ask for a Load vs. Stroke Curve from your supplier to verify performance for your application.
6. Is the Force Truly Constant?
While the term “constant force” suggests perfection, in practice, the force may vary slightly—typically within ±10%. For most uses, this deviation is negligible. However, in precision systems, compensations (e.g., dampers or buffers) might be required.
7. Expert Insights
“The greatest strength of constant force springs lies in their steady output—unlike conventional springs, they do not stiffen with travel.”
— Mechanical & Engineering Review, 2021, Issue 8
“In high-reliability cable systems, the use of constant force springs can significantly reduce fatigue and mechanical failure.”
— Liu, T., Journal of Robotics Design, 2022
Conclusion: Small Size, Steady Power
Constant force springs are a fine example of how material science and mechanical engineering meet in a compact, cost-effective form. Whether in a retractable mechanism or a high-end robotic assembly, they provide consistent force, long life, and design flexibility.
As innovation advances, these springs will continue to serve as reliable power components across new and evolving industries.
References
-
Wang, H., & Bowers, J. (2018). Nonlinear Modeling of Thin Strip Springs. Journal of Applied Mechanics, 85(2), 215–222.
-
Liu, T. (2022). Constant Force Springs in Robotic Cable Management. Journal of Robotics Design, 30(5), 132–140.
-
Mechanical & Engineering Review. (2021). Issue 8, Applications of Constant Force Springs in Modern Machinery
-
ASTM A684/A684M – Standard Specification for Steel Strip, High Carbon, Cold Rolled, for Springs
